Silicone Mold Vacuum Casting Services | High-Precision Prototypes

Introduction of the Vacuum Casting Process of Silicone Molds

Silicone mold vacuum casting services are a low-pressure manufacturing technique, where parts are replicated by getting liquid resin and pouring it into flexible silicone molds under a vacuum. It is a vacuum-assisted casting method that eliminates the trapped air, thus providing defect-free filler of the mold, a superior finish, and a consistent quality of the part.

It starts with the preparation of the CNC master pattern or 3D-printed masters, which is used as a reference model. These masters have been put in RTV silicone rubber to create a flexible but dimensionally stable mold. After the curing, the mold is divided, and the master is cut off, leaving a highly accurate cavity that can be cast in resin.

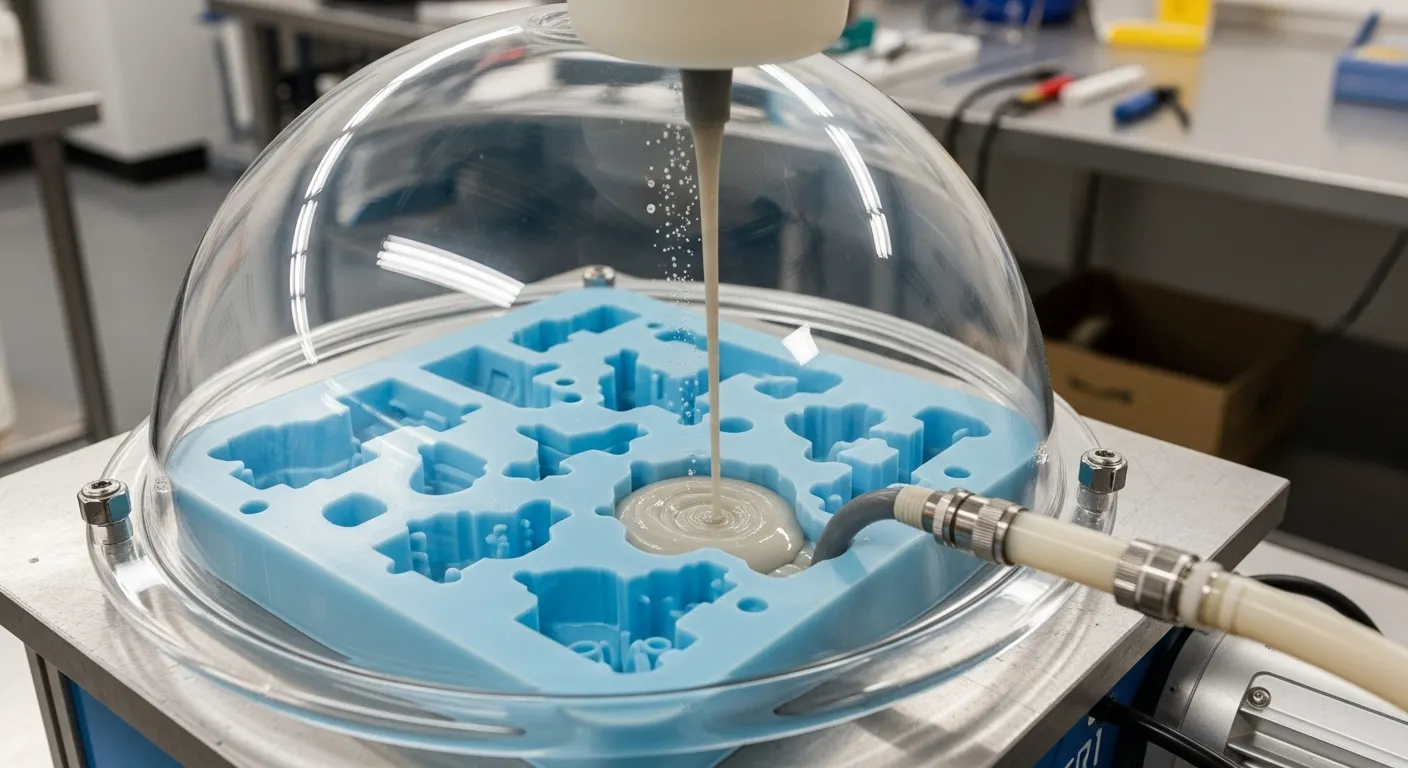

Polyurethane resins, epoxy casting resin, or elastomer materials are poured into the mold under vacuum pressure when there is a requirement to perform a process of degassing and vacuum pouring. The low-pressure casting process maintains the absence of air bubbles and the consistent flow of the material, including in complicated shapes.

Silicone Mold Casting Technology: Meeting Flexibility and Precision

The flexibility and precision of the silicone mold casting technology make it such an effective method of casting a mold. Silicone rubber is a material that can be easily captured to give finer details, sharp edges, and textured surfaces, and has a high level of accuracy in the replication of the mold.

Flexible silicone tooling does not require demolding the tool with great difficulty, as rigid metal tooling does. This is best suited to intricate geometry replication, inner passages, slim walls, and undercuts.

Also, silicone molds that are heat resistant can be cast in a mold multiple times, and generally yield 15-25 excellently cast parts per mold with a narrow dimensional margin.

Mold Casting and Material Choice RTV Silicone

The material selection is an important aspect of silicone mold casting in a professional setting. RTV silicone mold casting at GD Prototyping is combined with an extensive selection of engineering-grade resins to allow real-world performance.

The Materials Commonly Used are:

• ABS-like rigidity, Polyurethane vacuum casting resins.
• Optical or flexible parts, transparent and elastomeric resins.
• Thermal and mechanical stability improved in epoxy casting resin.
• Elastomers of rubber type with selectable Shore hardness.

It is flexible in form and can be vacuum cast to imitate injection-molded plastics like ABS, PP, PC, and rubber parts - ideal for functional testing and validation.

Vacuum Casting Silicone Tooling: Soft Tooling with Huge Benefits

Vacuum casting tooling. Silicone vacuum casting tooling is commonly known as soft tooling manufacturing, and with reason. It has a drastic effect on the cost of tooling, lead time, and design risk.

Key Advantages Include:

• Quickly made molds as opposed to metal tooling.
• Simple design changes and speedy prototyping.
• Low-volume tooling is cost-effective.
• Optimization of high surface finishes without secondary processing.

It is what makes the soft tooling silicone molds the best choice in the case of startups, R&D teams, as well as OEMs that want to be fast and not to compromise.

Prototyping Rapid Silicone Mold Vacuum Casting Services

In situations where fast responses are required, a competitive advantage is evident in rapid silicone mold vacuum casting services. Engineering sample production, quick design assessment. Parts may be manufactured in a matter of days, allowing one to do it.

Prototyping materials: Silicone mold, vacuum casting supports:

• Testing of the functional prototype.
• Design for manufacturability (DFM) evaluation.
• Pre-production testing
• Checking of product design.

Since the parts cast under vacuum are very close to the final production behavior, engineers are assured of trying them, fitting, working, and functioning successfully before investing in the mass production.

Prototyping Vacuum Casting with Silicone Molds

As opposed to visual-only prototypes, vacuum casting prototypes using silicone molds are meant to be used in the real-world. These components are characterized by high consistency in mechanical properties, which makes it possible to work at the load high temperatures, and undergo repetitive loads.

This renders functional prototype vacuum casting suitable for:

• Snap-fit assemblies
• Enclosures and housings
• Seals and gaskets
• Crystal cases and glasses.

The outcome is a prototype that is not merely right-looking, but right-behaving.

Silicone Mold Casting and Bridge Production

Between prototyping and full-scale production, the quandary faced by many companies is whether to choose one over the other. This gap is well filled using low-volume silicone mold casting.

Vacuum casting supports as a bridge manufacturing solution:

• Silicone mold casting in the short-run.
• Small lot vacuum casting.
• Pilot production runs
• Market testing production

This method enables companies to enter products at a quicker rate, test demand, and also improve designs prior to investing in injection molds.

Great Accuracy of Tight Tolerances: Vacuum Casting in Silicone Mold

Vacuum casting is where precision is concerned. When dimensional tolerance is well controlled, then GD Prototyping can be able to cast with high precision that can meet the demands of industries.

Benefits Include:

• Stable repeatability of parts.
• Tight dimensional accuracy
• Magnificent surface aesthetics.
• Minimal post-processing

This degree of accuracy is what renders high-precision silicone mold vacuum casting appropriate for OEM applications, where reliability is an issue of concern.

Vacation Casting Services of Silicone Applications

Silicone vacuum casting services are useful to numerous industries due to their flexibility.

Automotive Prototyping

Vacuum casting is used in prototyping automotive parts, including housings, ducts, and interior parts, and allows a quick testing and iteration process.

Medical Device Prototyping

It has controlled materials and finishes, which aid in the prototyping of medical devices, such as enclosures and functional units.

Consumer Electronics

Good in the consumer electronics enclosure field, excellent cosmetic quality, and tight tolerances.

Aerospace and Industrial Equipment

Applicable in aerospace non-structural components and industrial equipment housings, where accuracy is important and high reliability is needed.

OEM Silicone Molding Vacuum Casting Solutions

OEMs usually demand flexibility, scaling, and customization. Vacuum casting, custom silicone molds. Custom silicone mold vacuum casting offers custom solutions that can change according to the changing project requirements.

GD Prototyping offers end-to-end development solutions with: starting from OEM silicone vacuum casting solutions through industrial silicone mold casting services.

• On-demand silicone vacuum casting.
• Expandable production possibilities.
• Silicone mold vacuum castings at lower costs.

Optimization of Surface Finish and Aesthetic Quality

Surface quality is one of the outstanding advantages of vacuum casting silicone molds. The fine textures are reproduced in silicone molds naturally, and a designer can imitate almost the production look.

Other possible finishing choices are:

• Matte or glossy textures
• Color matching
• Transparent or tinted parts
• Coating or secondary painting.

This renders vacuum casting to be an excellent presentation model, demonstration, and customer validation.

Why Use GD Prototyping in the Silicone Mold Vacuum Casting?

At GD Prototyping, it is not a service, but a workflow of silicone-based vacuum casting, which is supported by engineering knowledge.

Key Advantages Include:

• The state-of-the-art silicone mold fabrication.
• Polyurethane vacuum casting of high quality.
• Stern industrial-grade quality standards.
• Quick lead times and prompt service.

Conclusion:

Since the beginning of prototyping is a low-volume operation, silicone mold vacuum casting services are an unmatched combination of speed, accuracy, and flexibility. Through the soft mold casting technology, rapid manufacturing methods, and highly advanced materials, the businesses can mitigate the risk, minimize costs, and increase the rate of innovation.

Ready to go quicker and at the same time maintain the level of quality, GD Prototyping will be your preferred company when it comes to professional silicone mold casting solutions.
