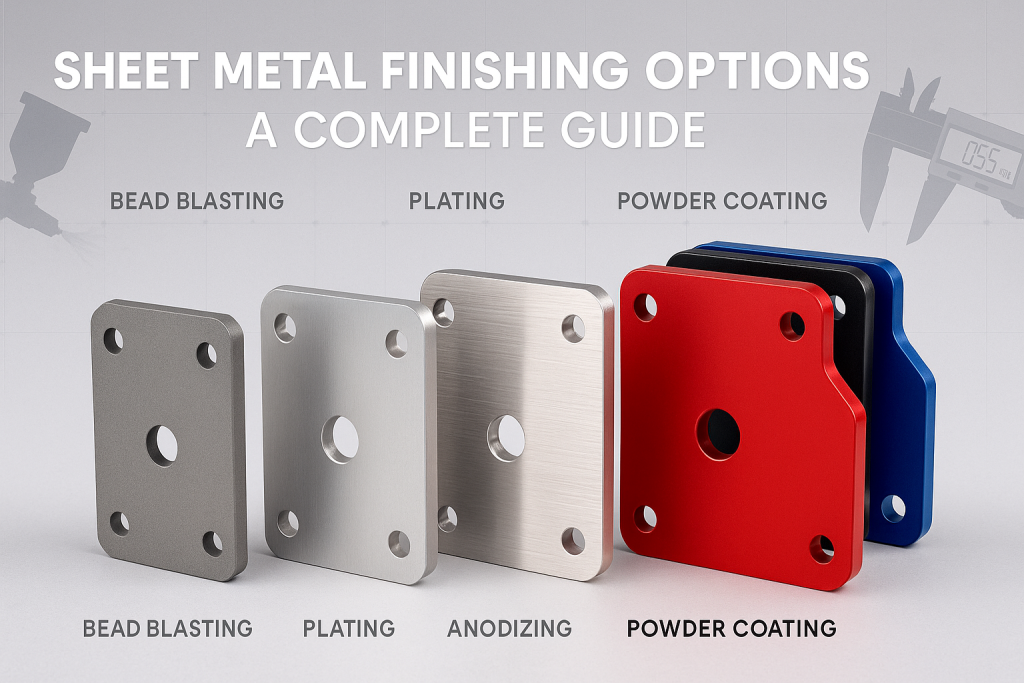

Sheet Metal Finishing Options: A Complete Guide

A sheet metal part is not truly finished when it comes off the press brake. At that stage, it is a raw, fabricated component. Its journey is incomplete. The final finishing step is what transforms this raw form into a final product. This secondary process protects the part from the environment. It gives the part its final cosmetic appearance. It also ensures the part can perform correctly in its end-use application. The choice of finish is a critical engineering decision. It balances durability, aesthetics, and cost.

Sheet metal finishing options are a range of secondary processes applied to a fabricated part to improve its durability, corrosion resistance, and cosmetic appearance. Common options include durable powder coating, protective anodizing for aluminum, electroplating, and various mechanical finishes like bead blasting. Selecting the right option is essential for the product's longevity and success.

As a one-stop shop for fabrication and finishing, GD-Prototyping guides clients through this critical selection process. This guide provides a comprehensive overview of the most common and effective finishing options available. We will explore how each process works, its key benefits, and its ideal applications.

The Purpose of Finishing: Why Go Beyond Raw Metal?

Applying a finish to a sheet metal part is not just about making it look good. It serves several critical engineering functions. A part's finish is often just as important as its geometry or material. The decision to apply a specific finish is typically driven by one of four primary goals.

Enhancing Durability and Wear Resistance

Many applications require parts to withstand mechanical wear, abrasion, and scratching. Raw metals, especially softer ones like aluminum, can be easily damaged. Finishes like Type III (hardcoat) anodizing or nickel plating create an extremely hard surface. This surface is far more durable than the base metal. This significantly extends the service life of components in high-wear environments.

Improving Corrosion Resistance

This is the most common reason for applying a finish. Most metals, particularly steel and certain aluminum alloys, will corrode or oxidize when exposed to moisture and air. This corrosion can compromise the structural integrity and appearance of the part. Finishes like powder coating, zinc plating, and anodizing create a protective barrier. This barrier seals the base metal off from the environment, preventing rust and oxidation.

Achieving a Specific Cosmetic Appearance

The final look and feel of a product are critical to its market success. Finishing processes provide complete control over a part's aesthetics. Powder coating and painting offer a nearly infinite selection of colors, gloss levels, and textures. Anodizing can create a rich, metallic sheen. Mechanical finishes like brushing can produce a decorative, high-end look.

Providing Special Properties

Some finishes are chosen for the unique functional properties they provide. For example, a chemical conversion coating (chem film) is applied to aluminum. It provides corrosion resistance while remaining electrically conductive. This is essential for electronics chassis that require EMI shielding. Other finishes can provide enhanced lubricity or non-stick properties.

A Deep Dive into Applied Coatings: Powder Coating and Painting

Applied coatings involve applying a layer of organic material—typically a polymer or paint—to the surface of the metal. These are among the most common and versatile finishing options.

Powder Coating

Powder coating is a high-performance finishing process. It produces an extremely durable and attractive finish. It is often the default choice for parts that require excellent protection and a high-quality look.

• How it Works: The process is clean and efficient. First, the raw sheet metal part is thoroughly cleaned and pre-treated. The part is then electrically grounded and taken into a spray booth. A special spray gun applies a fine, dry powder made of polymer resin, pigments, and additives. The spray gun gives the powder a positive electrostatic charge. Because the part is grounded, the charged powder is attracted to it and adheres to the surface in a smooth, uniform layer. The coated part is then moved into a large curing oven. The heat melts the powder, causing it to flow together and chemically cross-link into a hard, continuous, and durable polymer coating.
• Key Benefits: Powder coating is exceptionally durable. It is highly resistant to chipping, scratching, fading, and chemical exposure. It creates a thick, protective layer that provides excellent corrosion resistance. The process is also environmentally friendly, as it contains no volatile organic compounds (VOCs).
• Ideal Materials: The process works on any metal that can be electrically grounded and can withstand the curing temperature (typically around 200°C / 400°F). This includes steel, stainless steel, and aluminum.
• Applications: Its toughness makes it ideal for a huge range of products. This includes server racks, electronic enclosures, outdoor equipment, automotive brackets, and industrial machinery.

Liquid Paint (Wet Painting)

Liquid painting is a more traditional but still highly relevant finishing method. It offers a range of cosmetic options that are sometimes difficult to achieve with powder coating.

• How it Works: Liquid paint is applied to a prepared surface using a high-pressure spray gun. It is typically applied in a controlled spray booth to contain overspray. The process often involves multiple layers, including a primer, one or more color coats, and a final clear coat to provide gloss and protection. The paint can be either air-dried or cured in a low-temperature oven.
• Key Benefits: The primary advantage of liquid paint is its cosmetic versatility. It can achieve a very high-gloss, "Class A" automotive finish. It can also be used to create metallic and pearlescent effects. It can be applied to parts that cannot be heated to the high temperatures required for powder coating.
• Applications: Liquid paint is common in the automotive industry for body panels. It is also used for high-end consumer electronics and any product where a specific, high-gloss cosmetic appearance is the primary goal.

A Deep Dive into Plating and Chemical Films

These processes involve altering the surface of the metal on a chemical or electrochemical level. They are used to add corrosion resistance or specific functional properties.

Plating Processes

Plating involves depositing a thin layer of a different metal onto the surface of the part. This is typically done through an electrochemical process called electroplating.

• Zinc Plating: This is one of the most common and cost-effective ways to protect steel parts from corrosion. The steel part is submerged in an electrolyte solution containing dissolved zinc. An electric current is passed through the solution, causing a thin, durable layer of zinc to be deposited onto the steel. The zinc layer acts as a sacrificial coating. It will corrode first, protecting the steel underneath.
• Nickel Plating: This process deposits a layer of nickel onto the part's surface. Nickel plating provides excellent corrosion and wear resistance. It also offers a bright, decorative finish. It is harder than zinc plating and provides a more durable surface. It is often used for hardware, connectors, and components that require both protection and a good appearance.

Chemical Conversion Coatings (Chem Film)

A chemical conversion coating is created when a chemical solution reacts with the metal surface to form a very thin, protective film. This film is an integral part of the metal; it is not a layer applied on top.

• How it Works: The most common type is chromate conversion coating for aluminum. The aluminum part is dipped into a chemical bath containing chromate compounds. This creates a chemical reaction that forms a thin, iridescent film on the surface.
• Key Benefits: This film provides three key benefits. First, it offers good corrosion resistance. Second, unlike anodizing, it is electrically conductive. Third, it is an excellent primer that dramatically improves the adhesion of paint or powder coating.
• Applications: Chem film is the standard finish for many aerospace and military aluminum parts. It is also used for electronics chassis and housings that require electrical conductivity for EMI/RFI shielding.

A Deep Dive into Anodizing (For Aluminum)

Anodizing is a specialized electrochemical process used exclusively for aluminum and its alloys. It is not a coating applied to the surface; it is a process that grows a hard, protective layer of aluminum oxide directly from the base material.

What is Anodizing?

The process involves submerging an aluminum part in an acid electrolyte bath and passing an electric current through it. The part acts as the anode (the positive electrode), and the current causes the surface of the aluminum to oxidize in a highly controlled way. This creates a very hard, uniform, and porous layer of aluminum oxide. This porous layer can then be dyed to add color and sealed to provide maximum corrosion resistance.

Type II Anodizing (Sulfuric Acid Anodizing)

Type II is the most common type of anodizing. It is used for both protective and cosmetic purposes.

• Benefits: It creates a durable, corrosion-resistant surface. The porous oxide layer readily accepts dyes, allowing for a wide range of vibrant, metallic colors (clear, black, red, blue, etc.). It is a relatively low-cost finishing option. The choice between Anodizing Type II vs III is one of the most critical decisions for any aluminum part.
• Applications: It is widely used for consumer electronics housings, front panels, machine parts, and architectural components.

Type III Anodizing (Hardcoat)

Type III, or hardcoat anodizing, is a more industrial process. It uses a higher current and a lower temperature bath to create a much thicker and denser oxide layer.

• Benefits: The resulting surface is extremely hard and abrasion-resistant, approaching the hardness of some tool steels. It provides exceptional corrosion protection and electrical insulation.
• Applications: It is used for high-wear applications. This includes military components, pistons, valves, and any aluminum part that will be subjected to harsh mechanical or environmental conditions.

A Deep Dive into Mechanical Finishes

Mechanical finishes do not add a coating. Instead, they alter the physical texture of the raw metal surface itself.

As-Fabricated / Standard Finish

This is the default condition of the part after it has been cut and bent. It will have visible tool marks from the press brake and a raw edge from the laser cutter. For many non-cosmetic, internal components, this finish is perfectly acceptable and is the most cost-effective option.

Bead Blasting

Bead blasting is an abrasive blasting process that propels a stream of very fine, spherical glass beads at the surface of the part.

• How it Works: The impact of the millions of tiny beads removes minor surface imperfections. It creates a uniform, non-directional, matte or satin finish. It is a much gentler process than sandblasting and does not remove a significant amount of material. To learn more, see our guide on Bead Blasting vs Sandblasting.
• Benefits: It is excellent for achieving a high-quality, non-reflective cosmetic finish. It can hide fingerprints and minor scratches. It is often used as a pre-treatment before anodizing to create a soft, matte look.

Brushing / Graining

This process uses an abrasive belt or wheel to create a pattern of fine, parallel lines on the surface of the metal. This is known as a "brushed" or "satin" finish. It is a purely decorative finish, often seen on high-end appliances and architectural trim.

The Decision Matrix: Choosing the Right Finish

With so many options, selecting the best finish can be a challenge. This matrix provides a high-level guide to help you choose based on your primary requirements.

Finishing Option	Primary Purpose	Compatible Materials	Relative Cost	Key Benefit
Powder Coating	Corrosion & Durability	Steel, Aluminum, SS	$$$	Extreme toughness, many colors.
Anodizing Type II	Cosmetic & Corrosion	Aluminum	$$	Good protection, vibrant colors.
Anodizing Type III	Wear Resistance	Aluminum	$$$$	Extreme hardness, superior protection.
Zinc Plating	Corrosion Resistance	Steel	$	Low-cost rust prevention.
Chem Film	Corrosion & Conductivity	Aluminum	$$	Corrosion protection without losing electrical conductivity.
Bead Blasting	Cosmetic Appearance	All Metals	$$	Creates a uniform, non-glare matte finish.
As-Fabricated	Functional (Non-Cosmetic)	All Metals	-	The lowest cost option.

How to Design for Finishing

The chosen finishing process can have implications for the part's design. It is a best practice to consider these factors early in the design phase.

Design Considerations for Finishing

• Add holes for hanging parts. Many finishing processes, especially powder coating and plating, require the part to be hung on a rack as it moves through the line. Designing small, strategically placed holes for these hooks can simplify the process and ensure a more uniform coating.
• Clearly define masking requirements. There are often areas on a part that must remain free of any coating. This can include threaded holes, electrical contact points, or press-fit surfaces. These areas must be clearly marked on an engineering drawing with instructions to "mask before finishing."
• Avoid sharp external corners for coatings. Finishes like powder coating and paint have a tendency to pull away from sharp external corners due to surface tension. This results in a very thin coating at the sharpest point, which can be a weak spot for corrosion. Designing parts with a small radius on external corners allows for a more uniform and durable coating.
• Account for dimensional changes. Many finishing processes add thickness to a part. A layer of powder coating can add 0.1 mm or more to each surface. A hardcoat anodize can add 0.05 mm. These added thicknesses must be accounted for in the initial design, especially for parts with tight tolerances that must fit together in an assembly.

Conclusion

Choosing a finish for a sheet metal part is a critical engineering decision. It is a careful balance between the need for durability, corrosion resistance, cosmetic appearance, and cost. From the rugged protection of powder coating to the high-tech hardness of anodizing, each finish offers a unique set of properties. By understanding these options and their ideal applications, a designer can ensure that their product not only functions correctly but also survives and thrives in its intended environment.

This selection process is a key part of Design for Manufacturability. Partnering with a manufacturing expert who can provide a full suite of fabrication and finishing services is the most effective way to manage this process. At GD-Prototyping, we provide this integrated solution. We guide our clients to the best finishing choice to ensure a successful outcome for every project.
