Custom Injection Molding Prototype Parts | Complete Guide

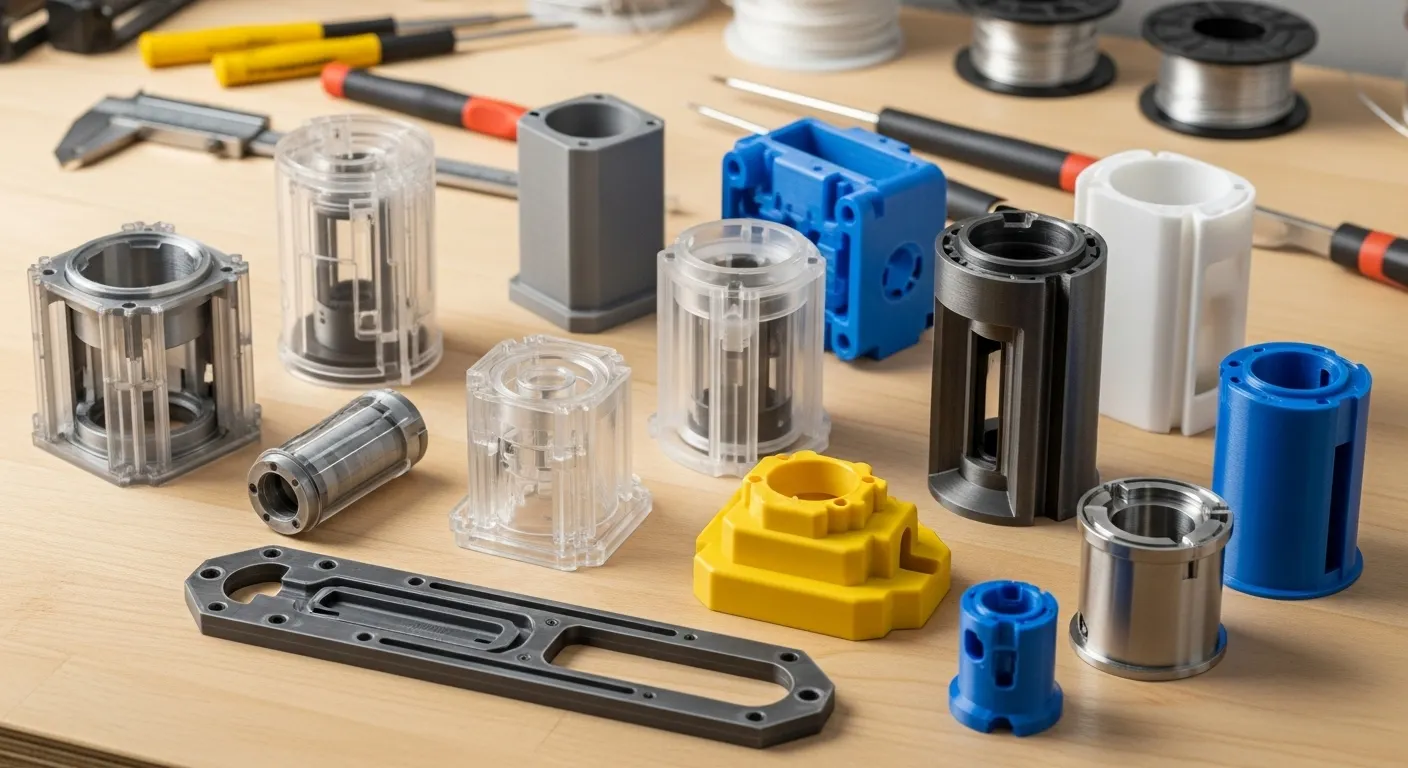

What are Custom Injection Molding Prototype Parts?
Custom injection molding prototype parts are plastic components that are manufactured by thermoplastic injection molding processes to be used in creating prototypes. In contrast to mass production, where it is necessary to have metal tooling, prototype injection molding involves high-precision mold prototyping to print parts at high speed and accuracy to do design validation, testing, and small-scale production.
The sections are capable of reproducing the mechanical, thermal, and aesthetic characteristics of the final product, and this has provided the designers with the capacity to evaluate functionality and appearance before the manufacture of full scale product. Mostly used materials are ABS and polycarbonate, polypropylene, and other engineering-grade plastics to give assurance that the prototypes would act like end-use components.
Injection Molding Process of Prototype Parts
A digitally modeled design or a prototype master with a CNC machine starts the custom plastic molding process. It is a master to form a mold that is able to capture the smallest details, which are in microns, and therefore it is possible to inject the mold into a prototype part with a high level of detail.
The Process Includes:
Selection of Material: Thermoplastics are selected on the basis of mechanical demands, heat resistance, or cosmetic finish.
Molding: The chosen plastic material is placed under controlled molding by injecting it into precision molds.
Cooling & Demolding: After cooling, the prototype part is removed with great care, preserving dimensional and surface integrity.
Post-Processing: Finishing, which may be polishing, coating, or matching to a certain colour, may be done to produce a cosmetic-grade surface.
With this technique, manufacturing is guaranteed to be close-tolerance, finishes are smooth, and parts are a good replica of production-quality components.
Major Benefits of Made-to-Order Injection Molding Prototypes
Speed and Flexibility
Instant production of parts, Rapid prototype injection molding enables engineers to create functional components in days as compared to weeks. It can especially be useful when the on-demand manufacturing services are used with small batch injection molded prototypes, since it eliminates downtime and shortens product development cycles.
Cost-Effective Production
Conventional injection molding uses costly metal tooling, which cannot be used with prototypes or low-volume manufacturing. Tool-free prototype molding and bridge production injection molding processes enable businesses to produce functional prototype parts in plastics at a tenth of the cost.
High Precision and Quality
In high-precision mold prototyping, manufacturers are able to attain tight-tolerance injection-molded components that satisfy challenging specifications. Replication of plastic components assures prototyping of final production parts of both dimensions and functionality.
Material Versatility
There are a number of types of plastics that can be used to create prototypes, such as ABS-type materials, polycarbonate, polypropylene, or flame-resistant polymers. This is because it can be tested under actual real-life conditions and can give an understanding of material behavior, durability, and performance.
Industrial Uses
Custom injection molding prototype parts are used in a broad industry, and each industry is different and has its own needs:
Consumer Electronics
Such prototypes as custom electronic enclosure prototypes and housing and enclosure prototypes can be tested to make sure that the device is ergonomic, can be assembled easily, and can be thermally managed before large-scale production. Short-run injection molding and low-volume production of prototypes allow rapid iterations.
Automotive
Molded components used as prototypes in the automotive industry are highly stressed parts in mechanical and heat-resistant polymers. Injection molding prototypes are used to test functional assembly, fitment, and durability, and bridge production. Injection molding can be done before mass production.
Medical Devices
In medical devices, medical device prototype molding facilitates close testing of the plastic prototype casings and working prototype assemblies. ABS, polycarbonate, and polypropylene are some of the materials that can be sterilized or treated to be compliant so that prototypes are able to comply with the regulations.
Industrial Equipment
The industrial prototype plastic part prototyping enables engineers to test complex mechanical assembly, wear resistance, and functional injection molded parts in detail before committing to mass production.
Optical Prototyping: Micron-Level Precision
Besides the ordinary prototypes made of plastic, optical prototyping is also an important element in most high-tech sectors. This is done at a micron-level accuracy, surface quality, and material performance of optical lenses and components.
Key Features Include:
Tolerance: Micron-level precision of lenses and components.
Surface Quality: Optical finish with small roughness.
Materials: Polycarbonate, crystal materials, optical glass, acrylic, and PMMA.
Processes: CNC machining, diamond turning, injection molding, polishing, and coating.
Batch Size: small-batches to large-batches.
Finishing: Anti-reflective finish, hard finish, mirror finish.
Incorporation of thermoplastic injection molding and the innovative use of optical finishing enables the manufacturers to create the high quality functional components of the electronic, medical, and industrial sensors.
Product Designer and Engineer Benefits
Probably, prototype parts of custom injection molding are helpful in many ways to designers and engineers:
Functional Testing: Check the product usability, assembly, and mechanical performance.
Design Validation: Before large-scale production, verify the ergonomics, aesthetics, and tolerances.
Cost Savings: Can you make costly tooling mistakes with prototypes? Yes.
Material Insights: Learn the behavior of thermoplastic materials in the field.
Flexibility: Design fast changes and develop various iterations in a short period of time.
Through such benefits, the firms will be able to introduce high-quality products within a shorter time and also lessen development expenses.
Collaboration with GD Prototyping
On the side of businesses that require professional prototype services, GD Prototyping has been providing all-inclusive services. Our team supplies: small batch injection molded prototypes to high-precision optical components.
- Individual prototype injection molding services.
- Time-sensitive delivery parts.
- OEM prototype injection moulded components.
- On-demand prototype plastic parts
Conclusion
Custom injection molding prototype parts is an essential component of the modern manufacturing process, which suggests a peculiar set of speed, accuracy, and cost-efficiency. Designers can now create prototypes in electronics, automotive, medical, and industrial applications that are useful and ready to be used in production quickly, cost-effectively, and with a minimum of waste through a combination of thermoplastic injection molding, high-precision prototyping of the molds, and small-batch production.
Collaborating with established vendors such as GD Prototyping means that the companies can obtain high-quality materials, sophisticated machine work, and variable-pressure production, allowing them to become innovative with the confidence and efficiency that they will achieve success in their work.
