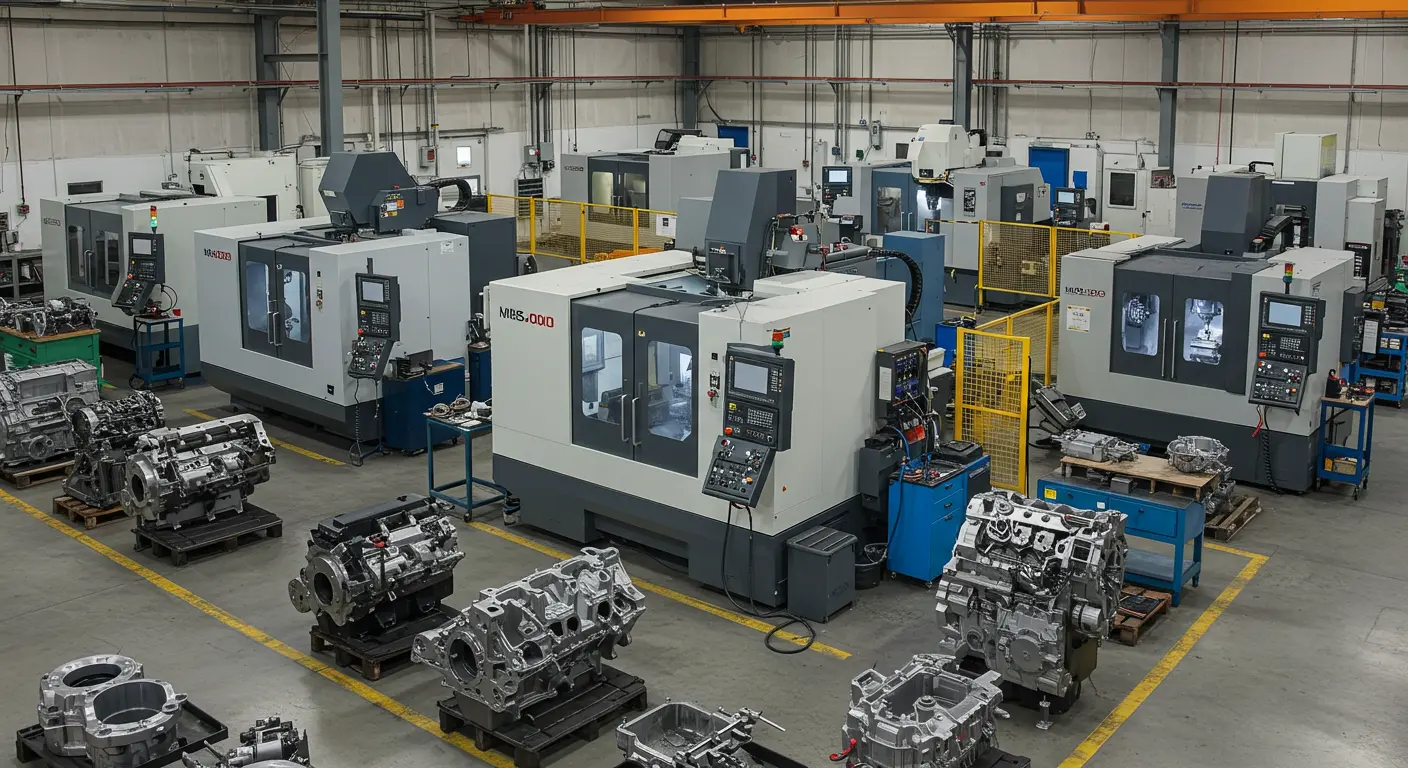

What is CNC Machining of Automotive Parts?
The production of metal and plastic components of vehicles by the use of computer numerical control (CNC) systems is known as automotive parts CNC machining. It is able to cut, mill, drill, and turn raw materials, including aluminum, steel, brass, and titanium, precisely and form them into complex automotive components with high tolerance and free of defects.
CNC automotive parts machining is different because it uses CAD/CAM design integration, which translates the digital models into precise tool paths, unlike conventional machining. All the curves, edges, and surfaces are made using the subtractive manufacturing technology, which means that the material is removed by layers to produce desired geometries.
Why CNC Machining is Necessary in the Automotive Industry?
Accuracy and repeatability are a world that the automotive industry lives in. CNC machining provides an advantage over traditional manufacturing regardless of whether the outcome is the design of next-generation EV parts or the creation of unique metal casings.
Extreme Precision and Dimensional Tolerance
A car of today is made up of thousands of parts that interlock. CNC machining makes it possible to tolerance down to +-0.01 mm, making engine blocks, gear housings, and transmission parts meet demanding performance requirements.
Scalable Production
Since prototype automotive parts machining up to mass production can be seamlessly scaled to CNC. Manufacturers are capable of passing through the concept phase to full-scale manufacturing without quality being compromised.
Material Versatility
CNC machining uses aluminum, stainless steel, brass, titanium, and plastic parts used in cars - it is adaptable to dimensions of performance, weight, and cost needs.
Consistency & Repeatability
Automotive CNC machining is used to be able to see a replica of the previous part in production and guarantees the reproducibility of the part and that there are no defects in the production of the part, which is important in the ISO-certified automotive CNC machining plants.
CNC Machine Machining in the Automotive Industry
We have a highly developed complex of CNC machining processes used at GD Prototypes, which are aimed at complicated automobile parts.
CNC Turning
In CNC turning, raw bars turn as a fixed cutting tool removes material to shape cylindrical parts, like a shaft, fastener, or valve stem. This process provides a high degree of tight tolerance machining and a high degree of surface finish.
CNC Milling
CNC milling involves rotating tools that are used to cut materials to elaborate forms - ideal in engine housings, gearbox covers, and chassis mounts. Multi-surface cutting, tool path optimization, and dimensional tolerance control are done by the use of 3-axis and 5-axis CNC machining.
Drilling & Tapping
In case of automotive fasteners, mounting holes and threaded parts, CNC drilling and tapping will ensure flawless alignment, surface roughness testing, and repeatable machining accuracy.
CAD/CAM Integration
Through the CAD/CAM software, we make sure that we have smooth digital-to-physical part translation. All the CNC program simulations are verified with toolpaths to avoid any errors, optimize machining time, as well as to provide the traceability of the processes.
CNC Machining of Automotive Components
CNC machining helps to facilitate a huge variety of automotive components, including prototyping and end-use. Some examples include:
- Powertrain parts and engine blocks.
- Gearbox casings and transmission casings.
- Brake system CNC components
Once the assembly has been completed, the chassis and suspension brackets are attached next.
- Custom automotive housings
- Electrical connector parts
- Components of the fuel injection system.
- EV battery cooling plates
- Instrument mounts and dashboards.
All machined parts are subjected to CMM inspection, automated measuring, and SPC validation to achieve perfect precision.
Process Flow: Design to Production
CAD Modeling: The step involves a 3D CAD modeling of the automotive part.
CAM Programming: Engineers develop tool paths by CAM software to maximize cutting parameters.
Installation: The raw material is mounted with the help of fixturing and workholding.
Processing: This is done through milling, turning, drilling, and tapping of the part.
Inspection & Finishing: Deburring, surface finishing, and dimensional verification are found in post-machining.
Assembly & Testing:This is a lean process that provides CNC machining to high-precision automotive parts, which ensures quality, repeatability, and punctuality.
CNC Machine in the Automotive Application
The CNC machining is essential in all sectors of the automotive industry:
OEM Production: In large-scale automotive OEMs, CNC machining offers design flexibility, prototyping, and precision in tooling.
Aftermarket Parts: To have an improved look and feel along with performance modification, custom CNC car parts can be produced at a very high manufacturing rate and in small low low-volume batches.
Electric Vehicles (EVs): As the demand for EVs grows, CNC machining of EV parts guarantees thermal control, lightweight construction, and close-tolerance assembly.
Motorsport: Titanium CNC components, brass fittings, and surface finishing are all essential in high-performance engines in order to ensure high efficiency.
We specialize in concept to production machining in GD Prototypes and do on-demand automotive machining and rapid prototype machining to suit your engineering needs.
Innovation and Industry 4.0 in the Machining of Autos
Industry 4.0 automotive manufacturing, which combines smart factory automation, optimization of machining through the use of AI, and monitoring of processes in real time, is adopted at GD Prototypes. Our CNC machines with IoT capabilities record data analytics in manufacturing, improving cutting performance, tool wear measurement, and cutting the cycle time.
Other integrations we make are additive and subtractive manufacturing to hybrid solutions that allow prototype innovations and a digital twin simulation that allows quicker design validity.
Prototype to Production: Stop Automotive Machine Partner
We provide complete automotive manufacturing solutions, e.g., design and assembly:
- Auto parts rapid prototyping services.
- Automobile automotive design testing.
- Small-scale manufacturing of automotive parts.
- DFM (Design for Manufacturability) advice.
- Finishing and coating after machining.
Our engineers collaborate very closely with customers to offer tailored machining solutions, low-cost automotive CNC machining, and rapid turnaround services - making sure that all projects are consistent with your technical and business objectives.
Automotive CNC Machining Excellence with GD Prototypes
Being a reputable company in CNC machining for the automotive industry, GD Prototypes provides quality automotive CNC machining parts that have revolutionized quality and innovation. An ideal blend of engineering skills, computerized manufacturing technology, and ISO certified quality makes our custom automotive parts machining services surpass your expectations.
Our automotive machining solutions combine performance, cost reduction, and production of your designs with unparalleled accuracy between prototype and production.
Conclusion
Automotive parts CNC machining is a part of the automotive world of the future - a combination of technology, innovation, and precision. It can manufacture all engine blocks, gear housings, and interior panels with a precision of microns because of CNC milling and turning, CAD/CAM integration, and Industry 4.0 automation. We do not machine parts at GD Prototyping; we create possibilities. It is time to create a modern era of mobility, part by part.
