What is ABS-Like Vacuum Casting Resin?
ABS-like vacuum casting resin is an alternate thermoplastic ABS that is used in vacuum casting. It integrates the mechanical characteristics of the ABS and the flexibility of the polyurethane resins, which makes it suitable for functional prototypes and also to low volume production runs.
It begins with a master model, which is produced through CNC machining or 3D printing, that represents all the detailed design features. A high-quality silicone mold is then created from this master, which gives the resin a flexible, durable, and exact cavity. When ready, liquid ABS-like resin is laid into the mold, and the mold is then placed under a vacuum degassing environment, making it bubble-free and giving it a high-level detail replica.
Properties and Materials of ABS-Like Resin
Vacuum casting is a technique that uses ABS-like polyurethane resin to provide engineering-grade performance with flexible material properties and finishes.
Key Material Advantages:
Strong ABS-Type Resin: Provides structural integrity to be tested with functionality.
ABS-Like Resin, Which is Impact-Resistant: Stands up to mechanical stress during assembly or handling.
ABS-Like Resin That is Heat-Resistant: It is applicable in high-temperature applications.
Dimensional Stability ABS-Like Resin: Tolerance accuracy is retained, usually within +-0.2 mm.
Surface- Finish ABS-Like Casting: Finishes are smooth, polished, or textured.
Clearly Visible ABS-type Vacuum Cast Resin: Best used in design validation and prototyping with aesthetics.
Flexible ABS-Like Polyurethane Resin: Resembles rubber-like materials where necessary.
Such characteristics are useful in the fact that ABS-like vacuum casting resin can be used in functional testing, engineering validation, and market-ready prototypes with a middle ground between rapid prototyping and full-scale manufacturing.
ABS-Like Vacuum Casting Process
The ABS-like resin vacuum casting process is very accurate and suitable for short-run/low-volume production.
Step 1: Master Model Creation
A master model is created, either in CNC machining or 3D printing, and every design detail of the part is faithfully reproduced.
Step 2: Fabrication of Silicone Molds
The master model is then cast in high-quality RTV silicone, resulting in a mold that can be used to manufacture 15-25 parts until accuracy starts to become distorted. Drive all detailed surfaces with precision that can be used in prototyping functional items and final parts.
Step 3: Resin Preparation and De-Gassing
This polyurethane resin ABS-type is combined with optional colorants/fillers to obtain desired visual or mechanical properties. The mixture is put in a vacuum chamber to eradicate trapped air to provide a bubble-free casting medium.

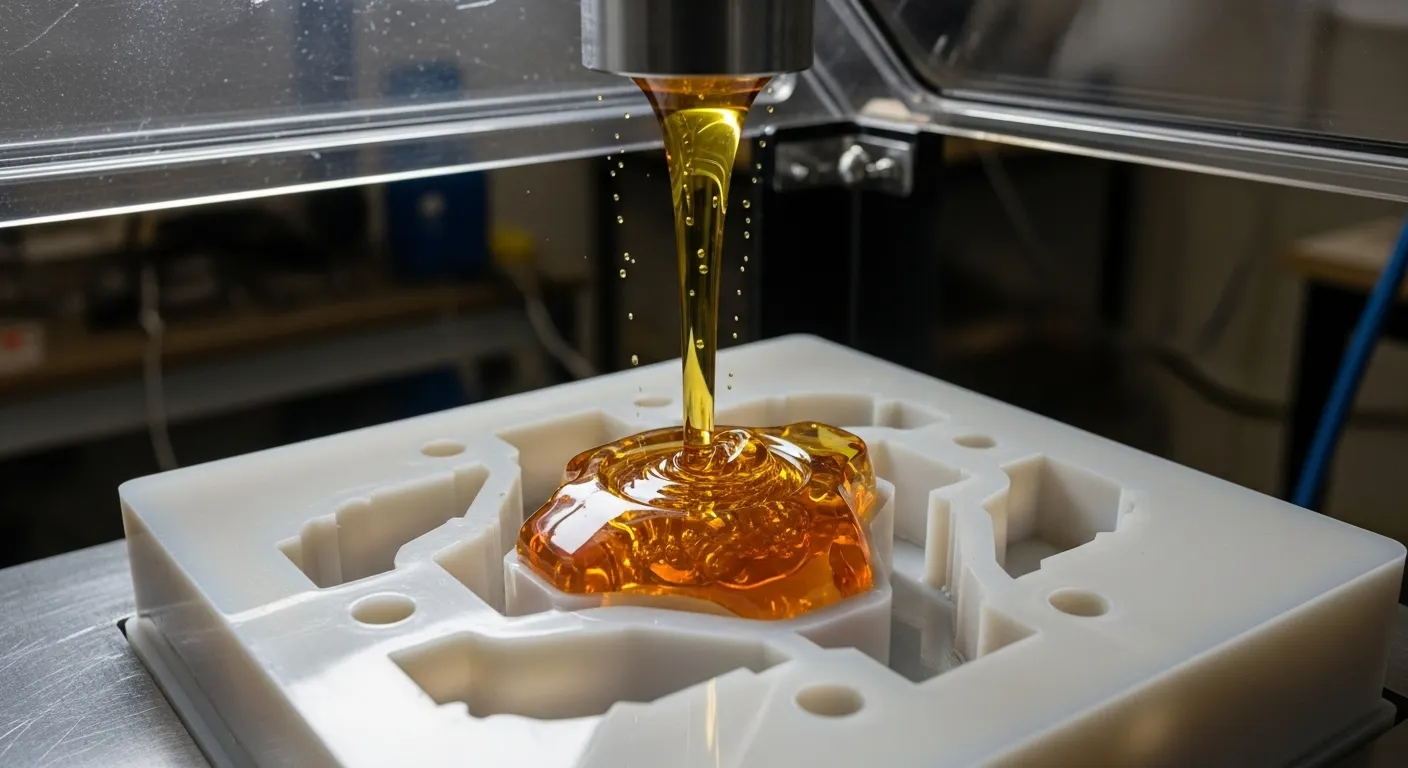

Step 4: Vacuum Casting
The resin is evenly deposited into the mold under vacuum. Atmospheric pressure gives better filling of all apertures, producing parts of high details and dimensionally accurate parts.
Step 5: Curing and Demolding
After the resin is cured, demolding of the parts is done. Very little demand on post-processing, but sanding, polishing, or painting can be used to beautify.
Step 6: Post-Processing Finishing
The vacuum-cast ABS-like components can be textured, painted, or clear-polished according to the needs of the application and offer a surface equivalent to injection-molded plastics.
Benefits of the ABS-Like Vacuum Casting Resin
High Precision: +-0.2 mm dimensional tolerance of parts guarantees that parts are of high specifications.
Low-Volume Production: A low-cost alternative to conventional injection molding in low-run volumes.
Rapid Iteration: The new molds can be made in a short time based on updated master models.
Functional Prototypes: This is a type of prototype in which parts are produced that are strong enough to be subjected to fit-form-function testing.
Material Versatility: Accepts high-strength, impact-resistant, heat-resistant, transparent, and flexible resin.
Smooth Surface Finish: Bubble-free casting creates components that can be used as presentation models or test models in the market.
End-Use Components: Mini-Components can be utilized in automotive, consumer electronics, and medical equipment.
In GD Prototyping, we specialize in offering ABS-like resin vacuum casting services that are precise, durable, and aesthetically notched.
Applications
Automotive Prototypes
- Dashboard, trim pieces, and interior panel.
- Assemblage test prototypes.
Consumer Electronics
- Electronic equipment enclosures and housings.
- Protest prototypes consist of heat-resistant, durable ABS-like resin.
Medical Devices
- Ergonomic testing components and assemblies check models.
- Pre-production validation prototypes.
Industrial Equipment
- Electrical housings, connector prototypes, and mechanical components.
- Functional parts in small batches that need a strong plastic.
Product Development
- Design verification prototypes.
- Minor production batches for market-testing or pre-launch.
ABS-like vacuum casting resin can be used to engineer validation parts, test assembly parts, and limited production in the end-use, as well as to support the low-volume manufacturing of plastics in many different industries.
Technical Specifications
Process Accuracy: +-0.2 mm
Materials: ABS-like polyurethane resin (strong, soft, heat-resistant, transparent).
Surface: smooth, painted, textured, clear-polished.
Batch Runs: 15-25 parts per silicone mold.
Mold Type: Fine quality silicone moulds of RTV.
Lead Time: 7-10 working days
The vacuum casting ABS-like plastic part is applicable in prototyping, functional testing, and small-scale manufacturing because of these specifications.
Why Choose GD Prototyping
We are a team of experts at GD Prototyping, which specializes in providing custom services related to casting resin and is oriented towards precision, reliability, and quality of surfaces.
Quick ABS-Style Vacuum Casting: Best when repetitive iterations and small production volumes are required.
Custom Prototypes: Functional components designed to be engineered and/or tested in the market.
Professional Casting Service: Guarantees high-level reproduction and dimensional precision.
Economical Small-Scale Manufacturing: Maximize cost-reduction, and not quality.
Integrating ABS-like type of resin with carefully managed low-pressure vacuum casting technologies, we provide high-quality parts, which satisfy both functional and aesthetic needs.
Conclusion
ABS-like vacuum casting resin is an efficient device in rapid prototyping and functional testing, as well as low-volume production. It is a combination of properties of engineering grade with great detail replication with dimensional accuracy to form parts to be used in automotive applications, medical applications, consumer electronics, and industrial applications.
Using professional ABS-like resin vacuum casting services at GD Prototyping, the businesses will have access to economical, high-quality prototypes and small-batch production components, all at a high level of accuracy, speed, and reliability.
